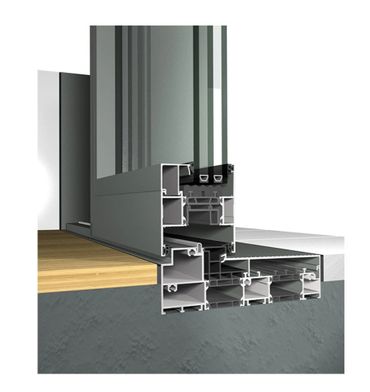

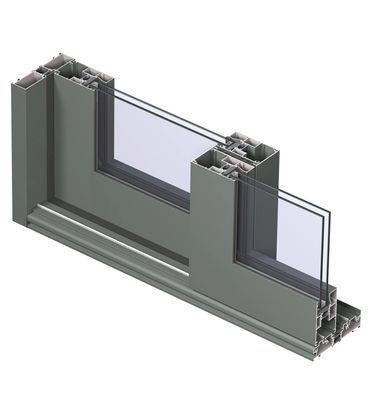

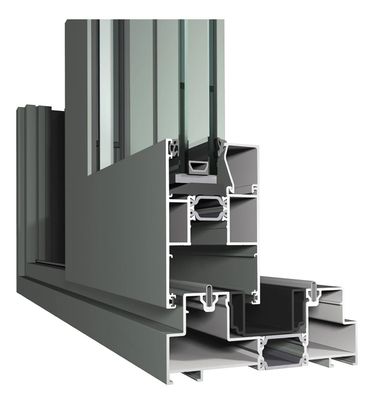

Master Patio
Master Patio
Performance
Performance and properties depend on size, profile combinations, hardware and infill choices.
Insulation
Thermal insulation - Uw 0.82 W/m²K
Utj Dependencies
Uw Dependencies
Ug 0.6W/m²K, warm edge spacer,
@4.50x2.30m, 36mm glass
Safety
Burglar resistance PAS 24 RC2
Impact resistance 14
Comfort
Air tightness Class 4 (600Pa)
Water tightness Class E1200 (1200Pa)
Wind load resistance Class C5 (2000Pa)
Durability Class 4 (50000 cycles)
Acoustics - Rw(C;Ctr) 44(-1;-4) dB
Properties
Max. dimensions & weight
Max. weight of glass 1543 lbs
Max. intertia transom - Ix 552 cm4
Min. intertia mullion - Ix 14 cm4
Min. intertia transom - Iy (glass load) 8 cm4
Max. intertia mullion - Ix 2690 cm4
Max. intertia transom - Iy (glass load) 57 cm4
Min. intertia transom - Ix 4 cm4
Sightlines
Min. width T-profile 50 mm
Min. depth mullion 42 mm
Min. visible width (interior view) 50 mm
Max. depth mullion 300 mm
Min. visible width (exterior view) 50 mm
Min. depth transom 5 mm
Glazing
Glazing method
Dry glazing
Pressure plate glazing
Structural clamped glazing
External glazing
Structural Glued Glazing
Max. glass thickness - frame/element 60 mm
Min. glass thickness - frame/element 6 mm
