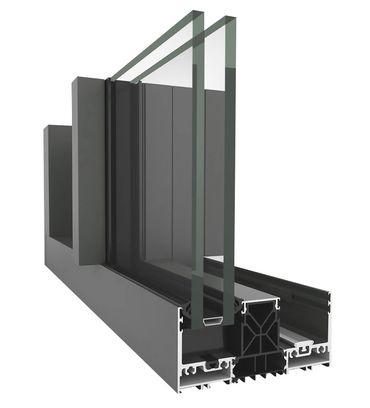

HiFinity

HiFinity

Performance

Performance and properties depend on size, profile combinations, hardware and infill choices.

Energy

Thermal insulation - Uw Double  0.28  Btu/hr.ft².°F

Uw Dependencies

Ug 0.6W/m²K, warm edge spacer,

@4.50x2.30m, 36mm glass

Thermal insulation - Uw Triple  0.21  Btu/hr.ft².°F

Utj Dependencies

Thermal insulation - Uw  0.87 W/m²K

Safety

Burglar resistance

PAS 24

RC2

Comfort

Air tightness   0.08 cfm/ft³

Water tightness  12 psf

Air tightness                   Class 4 (600Pa)

Water tightness             Class E750(750Pa)

Wind load resistance   Class C5(2000Pa)

Water tightness              Class 9A(600Pa)

AMAA rating                            Class CW

Opening & closing resistance     Class 3 (20000 cycles)

Air tightness 1 (150 Pa)

PG rating 60

Acoustics STC                           45 dB

Acoustics OITC                         37 dB

Acoustics - Rw(C;Ctr) 46(-1;-3) dB


Properties

Max. dimensions & weight

Min. height of element       1901 mm

Max. height of element       4165 mm

Min. width of element         2097 mm

Min. height of vent               1800 mm

Max. height of vent              4000 mm

Min. width of vent                1000 mm

Max. width of vent               3500 mm

Max. weight of vent                   750 kg

Max. weight of fixed part      1200 kg

Sightlines

Min. width 4-pane                            67 mm

Min. width meeting section         35 mm

Min. width T-profile                         35 mm

Min. visible width (interior view) 8 mm

Min. visible width (exterior view) 8 mm

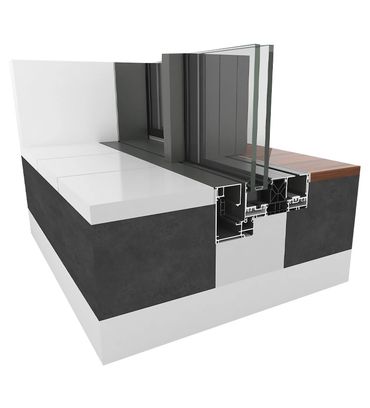

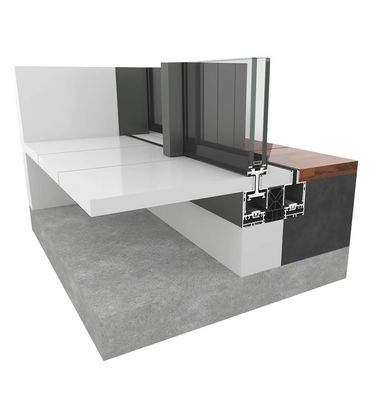

Min. height threshold                        0 mm

Depth Vent                                           44 mm

Depth frame-vent                           148 mm

Depth frame 2-rail                          148 mm

Depth frame 3-rail                236 mm

Depth frame 4-rail  325 mm

Glazing

Glazing method:

Envelope glazing  / Structural Glued  Glazing

Min. glass thickness - frame/element      36 mm

Max. glass thickness - frame/element     54 mm

Min. glass thickness - vent                           36 mm

Max. glass thickness - vent                          54 mm




System Guarantee

Download PDF
