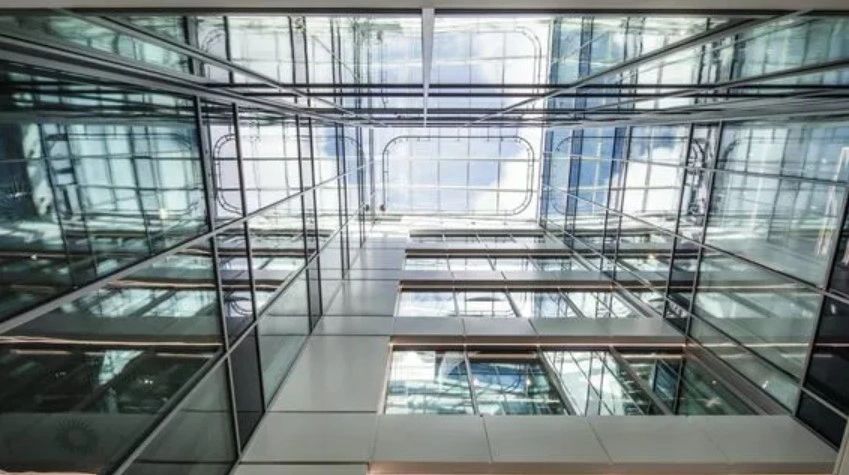

ConceptWall 50

ConceptWall 50

Performance

Performance and properties depend on size, profile combinations, hardware and infill choices.

Energy

Thermal insulation - Uf      0.56 W/m²K      Utj Dependencies

Uw Dependencies     1.3 W/m²K

Safety

Burglar resistance  RC2   RC3

Fire resistance  E 60  EI 60  EI 30  EW 30

Impact resistance  I5/E5

Comfort

Air tightness  AE 1950(1950Pa)

Wind load resistance   E2400 (2400Pa)

Water tightness  RE1950 (1950Pa)

Acoustics - Rw(C;Ctr) dB

Properties

Max. dimensions & weight

Max. weight of glass                                     1543 lbs

Max. intertia transom - Ix                           552 cm4

Min. intertia mullion - Ix                                14 cm4

Min. intertia transom - Iy (glass load)        8 cm4

Max. intertia mullion - Ix                          2690 cm4

Max. intertia transom - Iy (glass load)     57 cm4

Min. intertia transom - Ix                                 4 cm4

Sightlines

Min. width T-profile                              50 mm

Min. depth mullion                               42 mm

Min. visible width (interior view)     50 mm

Max. depth mullion                             300 mm

Min. visible width (exterior view)    50 mm

Min. depth transom                                5 mm

Glazing

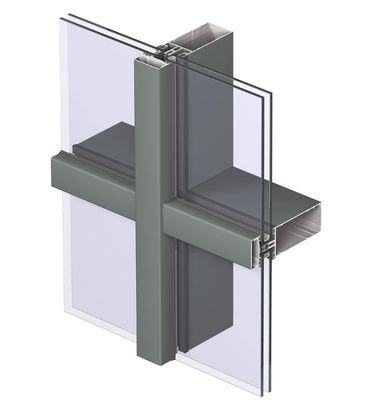

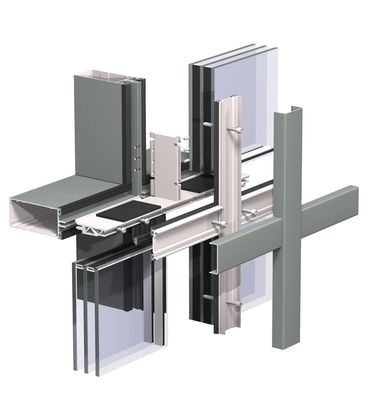

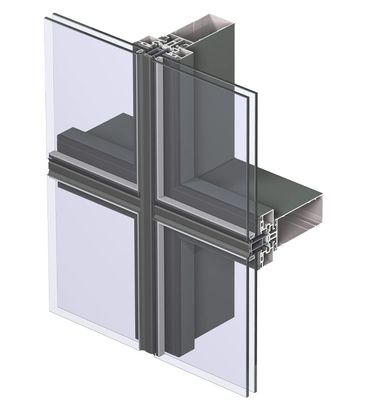

Glazing method:

Dry glazing / Pressure plate  glazing
Structural  clamped glazing / External glazing
Structural Glued Glazing

Max. glass thickness - frame/element   60 mm

Min. glass thickness - frame/element      6 mm


System Guarantee

Download PDF
